Customizable Acoustic Panels Perfect For Fabric And Wood Environments

Qingdao Catilan New Materials Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customizable Acoustic Panels Perfect For Fabric And Wood Environments

Brand Name : Cadilan

Certification : ISO9001

Place of Origin : CN, SHD

MOQ : 50

Price : 16.5

Payment Terms : T/T

Supply Ability : 5000m2/day

Delivery Time : 10-15days

Packaging Details : Each piece laminated, 4 corners protection, Reinforced carton

Elasticity : A

Color : Various colors available

Material : PET+MDF

Feature : Sound absorption

Service : OEM/ODM

Function : Sound proof ,Fireproof

Flame Retardant : Class A from ASTM E84 standard

Weight : 85kg per sqm

Density : 1650gsm,1800gsm

Application : Indoor

Durability : Long-lasting

Use For : Fabric acoustic panel inner core

Type : Wooden acoustic panel

Shape : Square or rectangle

Thickness : 21mm

Contact Now

Create a Unique Sonic Environment with Our Customizable Sound Acoustic Panels


Tailored Acoustic Panels for a One - of - a - Kind Sonic Environment

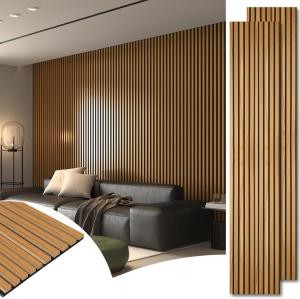

Our wooden grille sound - absorbing panels are designed to offer a comprehensive range of options, ensuring that they're a perfect fit for any space and acoustic need:

Standard Dimensions:
We provide three popular standard sizes: 2400mm×600mm×21mm, 2700mm×600mm×21mm, and 3000mm×600mm×21mm. The smaller - sized panels are ideal for confined spaces where installation can be a challenge, like compact meeting rooms or home libraries. They're easy to handle and install. Larger panels, on the other hand, are better suited for expansive areas such as hotel lobbies or big - scale offices. Using them minimizes visible seams, speeds up the installation process, and gives a more streamlined and elegant aesthetic.

Custom - Made Sizes:
Should the standard sizes not be up to the task, we offer full - fledged custom - sizing services. Whether it's the length, width, or thickness, our team will work closely with you. We'll base the customization on your exact on - site measurements and unique usage requirements. This is especially beneficial for irregularly shaped rooms or areas with very specific acoustic demands regarding the coverage and thickness of the sound - absorbing panels.

Additional Specifications:
For the wooden grille components, the width of each wooden strip typically measures 27mm, but this can be modified to match different design aesthetics and acoustic performance goals. The gap between the strips usually stays at 13mm, a balance that guarantees excellent sound absorption while maintaining an appealing appearance. The backing plate is crafted from top - grade high - density polyester fiber, with a consistent thickness of 9mm. The wooden strips are made from MDF covered with a wood veneer, with a thickness of 12mm, ensuring the sound - absorbing panel's overall durability and effective sound - dampening capabilities.


Customizable Acoustic Panels Perfect For Fabric And Wood Environments


Customizable Acoustic Panels Perfect For Fabric And Wood Environments

Customizable Acoustic Panels Perfect For Fabric And Wood Environments
